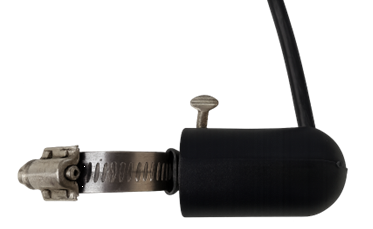

Position the Sensor
Place the electromagnetic sensor at the desired measurement point in the flow with the sensing axis aligned with the direction of flow.
How Flo-Pro Works
Direct electromagnetic velocity measurement for field applications.
Measure Velocity
The submerged electromagnetic sensor directly measures water velocity along its measurement axis.
View With Flo-View
Velocity is transmitted wirelessly to Flo-View for live display on a smartphone.
Where Flo-Pro Is Used
Reliable velocity measurement for streams, open channels and field applications.

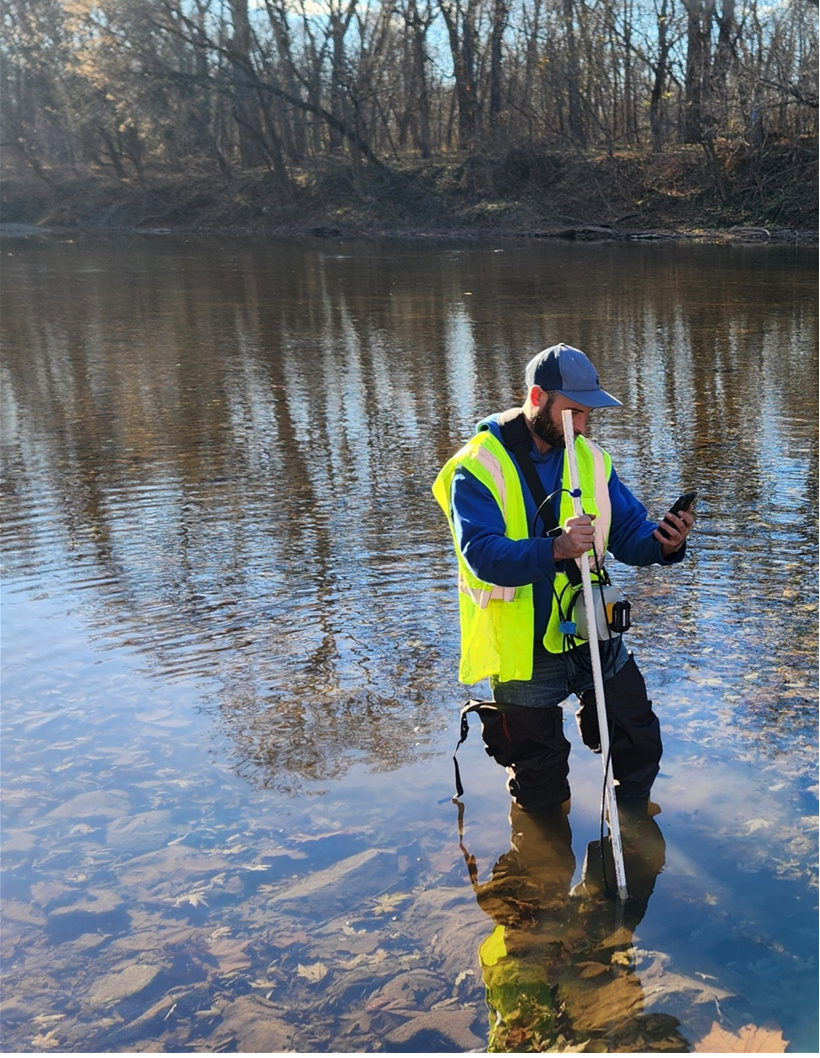

Streams & Open Channels
Flow Profiling
Municipal Infrastructure
Engineering & Field Studies
Measure water velocity in natural streams, drainage channels, canals and other open-channel flows.
Collect velocity measurements at multiple points and depths for stream and channel flow profiling.
Portable field measurements for stormwater, wastewater and water-resource applications.
Rapid velocity measurements for site investigations, hydraulic studies and field verification.
Technical Specifications
Flo-Pro performance and system specifications.
MEASUREMENT
Specifications subject to change without notice.
SYSTEM
VELOCITY RANGE
0–20 ft/s (0–6.09 m/s)
WIRELESS
Wi-Fi Direct, 2.4 GHz
ACCURACY
±2% of reading
WIRELESS RANGE
Approximately 50 ft
ZERO STABILITY
±0.05 ft/s (±0.015 m/s)
DISPLAY & COMPATIBILITY
Smartphone via Flo-View (Android/iOS)
MEASUREMENT
Single-axis electromagnetic velocity measurement
POWER
Removable 12 V DeWalt battery
SENSOR TYPE
Submersible electromagnetic velocity sensor
What’s Included
Everything needed for professional field velocity measurement.

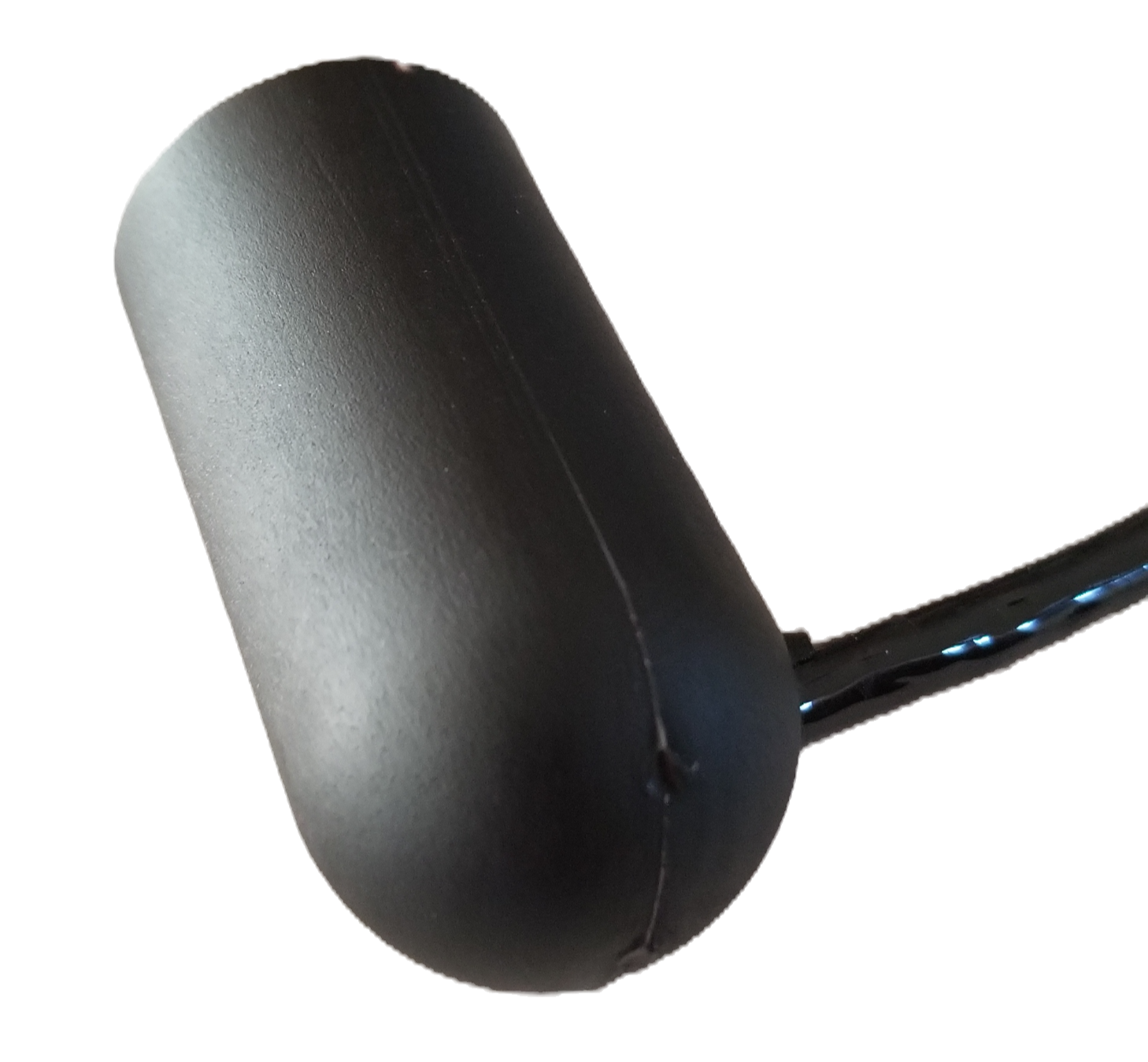

Flo-Pro Sensor
Submersible single-axis electromagnetic velocity sensor.
Electronics Unit
Portable electronics enclosure with shoulder strap and Wi-Fi connectivity.
Two 12 V DeWalt Batteries
Two removable batteries for convenient field operation and quick battery changes.
Battery Charger
Charger for the supplied 12 V batteries.
Flo-View
Built-in web application for live velocity measurement and instrument setup using a smartphone.
